手動對夾式刀型閘閥安裝尺寸以及外形圖

刀型閘閥產品概述
刀型閘閥，又稱刀閘閥或刀型漿閘閥。其應用范圍非常廣泛，從礦山、電廠的選煤、排矸、排渣，到城市的污水處理；從水泥、造紙廠的漿液輸送，到食品、衛生、醫藥等專業管道。超薄設計的刀型閘閥以其體積小、重量輕、阻流小、不積渣，易安裝，易拆卸的優點徹底解決了普通閘閥、平板閘閥、球閥、截止閥、調節閥、蝶閥等閥門的阻流大，占空間，易積渣，不易安裝和維修等疑難問題。因而大量的通用切斷類閥和調節型閥門被刀型閘閥取代。
產品概述
手動對夾式刀型閘閥又叫手動插板閥或手動閘板閥，適用于糖漿、紙漿、污水、煤漿、灰渣、粉塵、渣水混合物等介質管道，可作為介質切斷和節流使用，該刀型閘閥適合水平安裝，亦傾斜安裝。
技術參數范圍
公稱壓力：0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
公稱通徑：DN50mm~DN2000mm NPS 2"~80"
適用溫度：-38℃~1100℃（具體溫度范圍視密封副材質和介質性質而定）
連接法蘭：ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
主體材料：C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
密封形式：硬密封、軟密封
泄 漏 量：硬密封：D級（液體0.1×DNmm3/s）；軟密封：A級（零泄漏）
配套附件：安裝法蘭
Knife Gate Valve Product Introduction
Type knife gate valve, also known as the knife gate valve or knife gate valve type pulp. Its application scope is very broad, from coal mines, power plants, slag discharge, discharging the gangue, the city sewage treatment; From the cement slurry transportation, paper mills, to food, health, medicine and other professional pipeline. Ultra-thin design type knife gate valve with its small volume, light weight, small flow resistance, no slag, easy to install, easy to remove completely solve the advantages of the common gate valve, flat gate valve, ball valve, globe valve, regulating valve, butterfly valve, choke valve, occupy a space, easy slag deposition, not easy to install and maintenance problems. So a lot of general cut off valve and external regulation valve replaced by type knife gate valve.
Product Introduction
The valve is suatable for pipeline conveying such mediums including syrup,paper pulp,sludge,sewage,coal slurry,etc.for controlling switching on/off and throttling.it allows horizontal mounting as well as in clined mounting.
Technical Parameter Range
Nominal pressure:0.6MPa、1.0MPa、1.6MPa、2.5MPa、150LB
Nominal diameter:DN50mm~DN2000mm NPS 2"~80"
Suitable temperature:-38℃~1100℃（Range of temperature subject to the material of sealing and property of medium）
Flange drilling:ANSI B16.5、GB/T9113、JB/T79、HG、SH、JIS、DIN、NF、BS
Main materials:C.I、WCB、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2Ti、CF8、CF8M、CF3、CF3M、2Cr25Ni20
Seal type:Stainless steel hard seal、Teflon soft seal
Leakage:Stainless steel hard seal:Grade D(Liquid0.1×DNmm3/s)、Teflon soft seal:Grade A(Zero Leakage)
Accessories:Flange
設計制造Design and manufacture： JB/T8691-1998
法蘭連接Flange connection： GB/T9113.1-2000 JB/T79-94
結構長度Stuctural length： GB/T15188.2-94
試驗驗收Testing and acceptance： GB/T13927-92

主要零部件材質Key parts material			主要性能規范Key performance indicators
閥體、上蓋 body,upper cap	碳鋼、不銹鋼 Carbon steel,stainless steel		公稱壓力 Nominal pressure	PN
閥板 Valve plate	不銹鋼 Stainless steel		殼體試驗 Casing test	1.5×PN
閥桿 Stem	不銹鋼 Stainless steel		密封試驗 Leak test	1.1×PN
密封圈 Seal ring	橡膠、四氟、不銹鋼、硬質合金 Rubber,PTFE,stainless steel,hard alloy		工作溫度 Operating temperature	橡膠≤80℃,四氟密封≤180℃,硬密封≤425℃ Rubber ≤80℃,PTFE≤180℃,hard sealing ≤425℃
			適用介質 Working medium	糖漿、紙漿、污水、煤漿、灰、渣水混合物 Syrup,paper pulp,sewage,coal slurry,dust,slag-water mix

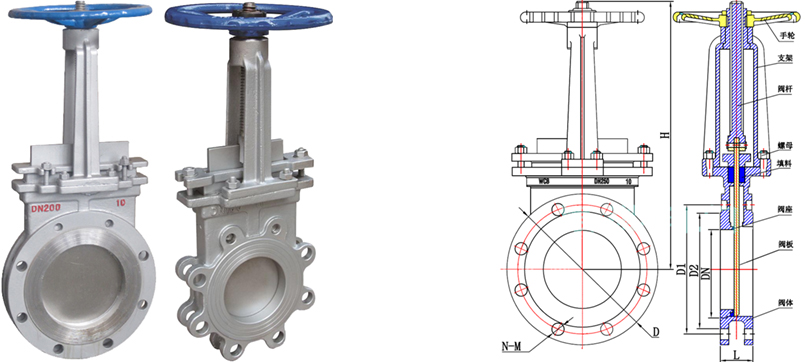

主要外形及連接尺寸Profile and connection dimension											單位Unit:mm
PN	DN	L	D	D1	D2	H	N-M	PN	DN	L	D	D1	D2	H	N-M
0.6	50	48	160	125	100	370	4-16	1.0	50	48	160	125	99	370	4-16
	65	48	180	145	120	400	4-16		65	48	185	145	120	400	4-16
	80	50	195	160	135	440	4-16		80	50	200	160	135	440	8-16
	100	50	215	180	155	510	8-16		100	50	220	180	155	510	8-16
	125	57	245	210	185	580	8-16		125	57	250	210	185	580	8-16
	150	57	280	240	210	690	8-20		150	57	285	240	210	690	8-20
	200	70	335	295	265	800	8-20		200	70	340	295	265	800	12-20
	250	70	390	350	320	960	12-20		250	70	405	355	310	960	12-22
	300	76	440	400	368	1200	12-20		300	76	460	410	375	1200	12-22
	350	76	500	460	428	1360	16-20		350	76	520	470	435	1360	16-22
	400	89	565	515	482	1550	16-22		400	89	580	525	485	1550	16-27
	450	89	615	565	532	1700	20-22		450	89	640	585	545	1700	20-27
	500	114	670	620	585	1900	20-22		500	114	715	650	609	1900	20-30
	600	114	780	725	685	2400	20-27		600	114	840	770	720	2400	20-36
	700	130	895	840	800	2600	24-27		700	130	910	840	788	2600	24-36
	800	130	1010	950	898	2700	24-30		800	130	1025	950	895	2700	24-36
	900	140	1110	1050	1005	3100	28-30		900	140	1125	1050	998	3100	28-36
	1000	216	1220	1160	1115	3600	28-30		1000	216	1255	1170	1110	3600	28-42
	1200	254	1450	1380	1325	4300	32-36		1200	254	1485	1390	1325	4300	32-48
